Bolt
Hex Flange Bolt
Bolt
Hex Flange Bolt
Hex flange bolts have an integrated washer flange under the hex head, distributing clamping load and eliminating the need for a separate washer. Cyfasten suppli…
- Standard
- DIN6921
- Size
- M5-M20, 1/4-20, 5/16-18, 3/8-16
- Material
- Carbon Steel, Stainless Steel, Alloy Steel, Brass, Aluminum, Monel
- Grade
- 4.8, 8.8, 10.9, 12.9; A2-70, A4-70, Gr5
- Finish
- Plain, Black Oxide, Zinc Plated, H.D.G, PTFE, Dacromet, Nickel, Chrome, Zinc Nickel
Description
Hex flange bolts have an integrated washer flange under the hex head, distributing clamping load and eliminating the need for a separate washer. Cyfasten supplies them in metric and imperial sizes for automotive, machinery, and structural use.
Specifications
| Standard | DIN6921 |
| Size | M5-M20, 1/4-20, 5/16-18, 3/8-16 |
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Brass, Aluminum, Monel |
| Grade | 4.8, 8.8, 10.9, 12.9; A2-70, A4-70, Gr5 |
| Finish | Plain, Black Oxide, Zinc Plated, H.D.G, PTFE, Dacromet, Nickel, Chrome, Zinc Nickel |

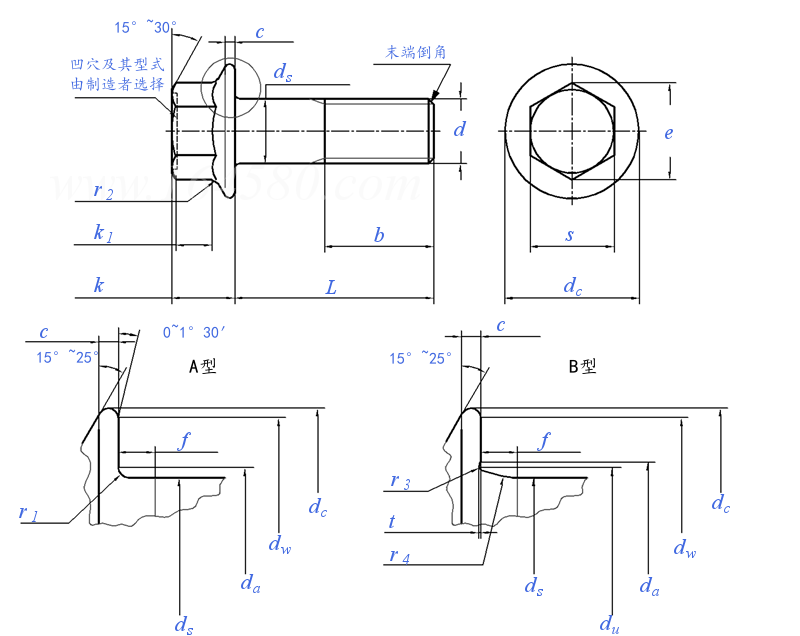

Technical Drawing
